Gasket Gallery: Rubber Overmolded on Metal

Photo: ACC Drive Support Gasket - Silicone with metal carrier

This gallery shows off some of our overmolded gaskets molded with a combination of metal and rubber, including silicone, HNBR, FKM, and Vamac.

The process of overmolding rubber onto metal carriers combines the flexibility and sealing capabilities of rubber with the strength and rigidity of metal.

Successful overmolding requires careful consideration of material selection, adhesion, processing techniques, and application-specific requirements.

Watch the video below to see how we overmold at our plant in Mexico and click the ‘contact us’ button to reach a product specialist who can quote your program.

HNBR with metal insert edge bonded Oil Cooler Seal

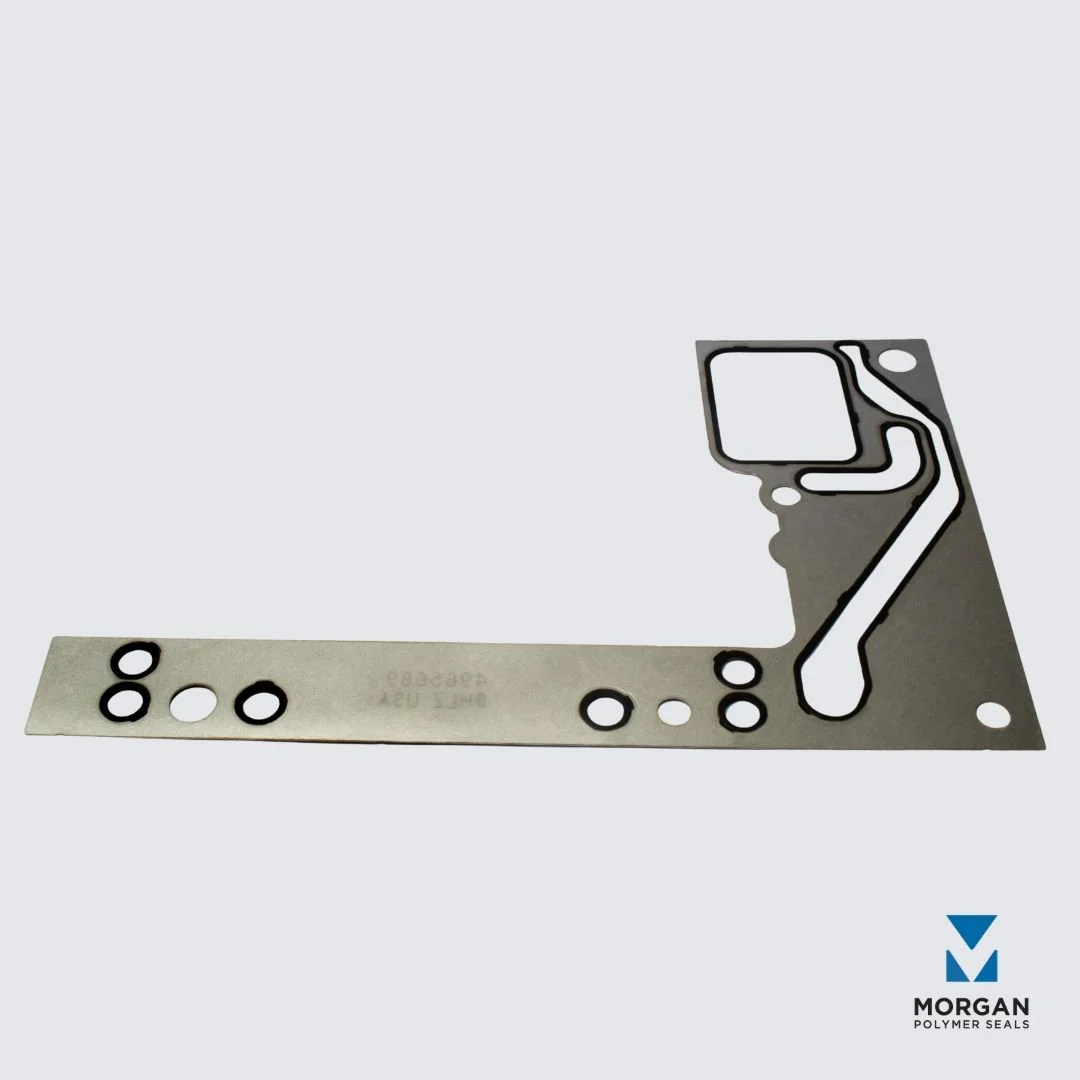

FKM with metal insert Fuel Control Module Gasket

AEM with metal insert Filter Pressure Bypass Valve

VMQ with metal insert ACC Drive Support Gasket
